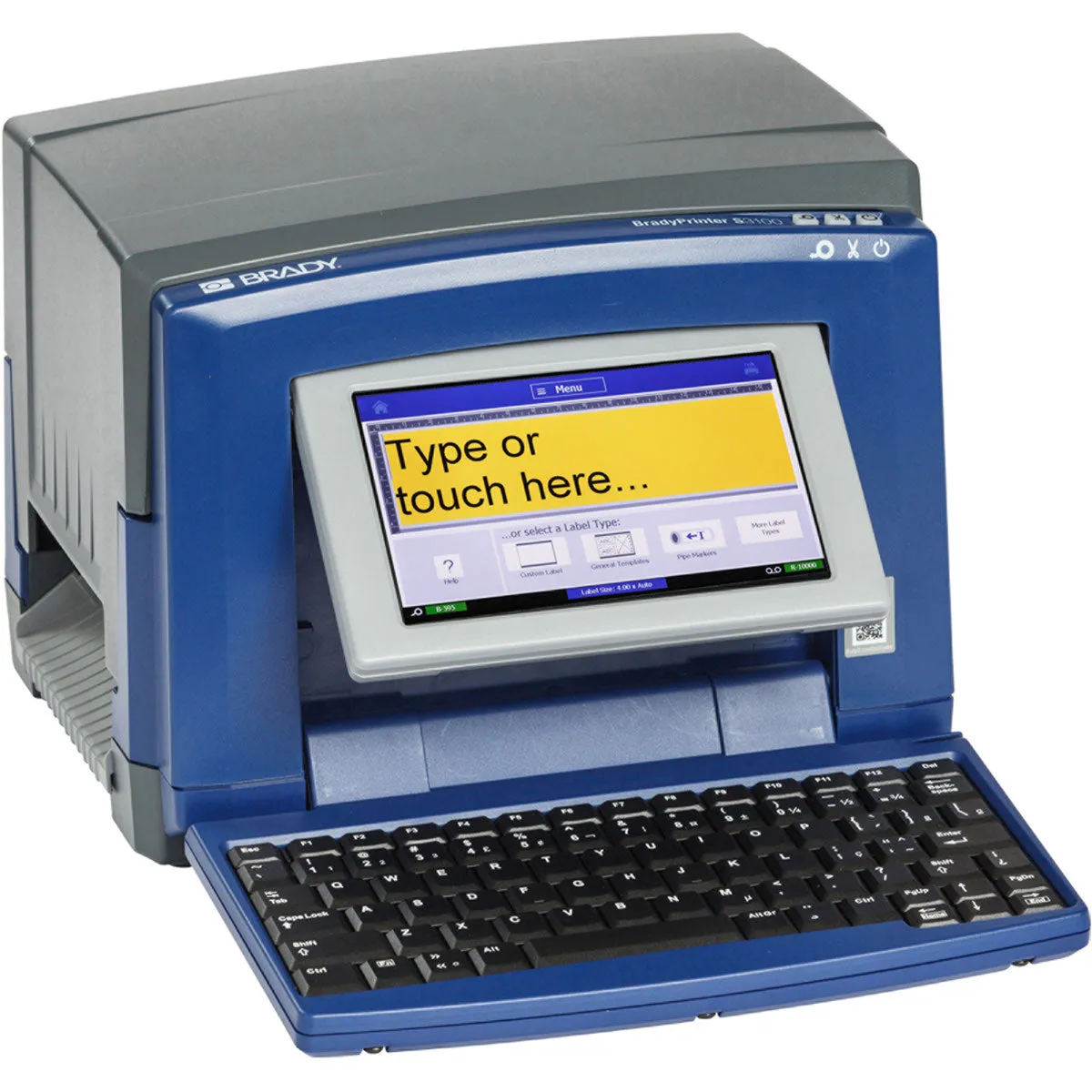

BradyPrinter S3100 Sign and Label Printer
Overview
The easy-to-use BradyPrinter S3000 Sign & Label Printer is designed to meet a variety of your facility identification needs, helping you save time so you can get back to work.
- Create the labels you need, when you need them without the wait with do-it-yourself label creation
- Ideal for multi-user areas in your facility, anyone can simply walk up, create labels and print right on the spot
- Label creation is even faster with the quick setup and print speeds that come with print smart technology from Brady
- Wi-Fi connectivity allows you to get data more easily from a variety of sources
- Includes Brady Workstation Safety and Facility ID Software Suite (BWS-SFIDS-NA-EM) to make label creation even easier
- Setup is stress free – Contact our Brady Technical Support Team and we will schedule a free phone setup appointment.
Product Highlights
Maximum Label/Tape Width:
4.25 in
Color Printing Capability:
Single Color
Maximum Labels per Day:
600
Stand Alone Printing:
PC connected & Stand-alone
Print Resolution:
300 dpi
Print Technology:
Thermal Transfer
Cut Options Available:
Cut at the end of print jobs, Cut between labels
Maximum Label/Tape Width:
4.25 in
Maximum Labels per Day:
600
Color Printing Capability:
Single Color.
Specifications
| Key Characteristics | ||
| Product Number | 149121 | |
| UPC | 754473588465 | |
| Arc Flash Labels, Arrow Tape, Chemical Labeling, Cold-Temperature Labeling, Equipment Marking, Facility & Safety ID, Floor Marking, GHS & Chemical Labels, Glow in the Dark Labels, Hazardous Material Labeling, Lean/5S, Lockout Tagout Labeling, Machine Tool Labeling, Material Handling Labeling, Pipe & Valve Marking, Plant Maintenance Labeling, Safety & Compliance ID, Secondary Container Chemical Labeling, Visual Workplace Labeling | ||
| UOM | Each | |
| Trade Name | BradyPrinter S3100 | |
| Brand Name | Brady® | |
| Malaysia | ||
| 8443.32.1050 |
| Dimensions | Dimensions | 9.5 in H x 12 in W x 10.25 in D |
| Height | 9.5 in | |
| Width | 12 in | |
| Depth | 10.25 in | |
| Display Size | 6.12 x 3.62 in | |
| Weight | 20 lb |
| Material Characteristics | Color | Blue, Gray |
| Product Features | Asset Tracking, Cold temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Floor Marking, General Identification, Hazard Communication Identification, Lean and 5S Labeling, Lockout Tagout, Pipe and Valve Marking, Safety Identification, Temperature Indicating Labeling | |
| Built-In Label Wizards | Arc Flash, Custom Label, General Templates, GHS/CLP, Pipe Marker, PreMade Labels, Right-to-Know, Tags, WHMIS | |
| Ethernet, USB, Wi-Fi | ||
| Cut Options Available | Cut at the end of print jobs, Cut between labels | |
| Cutter Type | Auto Cutter | |
| Display Type | Color LCD Touch Screen | |
| Estimated Media Changeover Time | 20 seconds | |
| Keyboard Type | Full Size QWERTY | |
| Media Sensor Type | Notch | |
| Memory | 256 MB | |
| PC connected & Stand-alone | ||
| Stand-Alone & PC Connect | ||
| Number of Symbols | 247 | |
| Plug Type | US | |
| Power Supply Voltage | 110 - 240 V | |
| Auto Shut-Off / Power Conserve | Yes | |
| Print Preview Feature? | Yes | |
| Special Characters Quantity | 95 | |
| Units | Inches, mm, Points | |
| User Interface Type | Keyboard, Touch Screen | |
| Yes |
| Printing Specifications | Yes | |
| Barcode Capability | Barcode Capable | |
| Barcode Symbologies - 2D | More through Brady WorkStation, PDF417, QR code | |
| Barcode Symbologies - Linear | Code 128 Auto, Code 39, EAN-13, Interleaved 2 of 5, JAN-13, More through Brady WorkStation, UPC-A | |
| No | ||
| Color Printing Capability | Single Color | |
| Font Sizes | 4 - 250 pt | |
| Font Styles | Arial, Arial 65, Courier New, Tahoma, Times New Roman | |
| 600 | ||
| Maximum Print Speed | 3 in/s | |
| Print Resolution | 300 dpi | |
| Print Technology | Thermal Transfer | |
| Media Sensor Adjustment | Not Required | |
| On Screen Indicators | Battery Life, Bluetooth Status, Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi |
| Compatibility | B30-, B30C-, B30EP- | |
| Label Material Types | Magnetic Polyester, Metal-detectable Polyester, Metallic, Non-metal Polyester, Metallized Polyester, Paper, Phosphorescent Polyester, Polyester, Polyester with Polyester Overlaminate, Polyimide, Polyvinylfluoride, Reflective Tape, Tamper-evident Metallized Polyester, Vinyl, Vinyl Cloth | |
| Continuous & Die-Cut Materials Supported | Continuous and Die-cut | |
| Custom Media Parts Available | No | |
| Custom Labels Available | No | |
| Maximum Label/Tape Width | 4.25 in | |
| Maximum Print Width | 4 in | |
| Maximum Printed Label Length | 5 ft | |
| 0.5 in | ||
| Maximum Liner Width | 4.33 in | |
| Software Compatibility | Brady Workstation, Windows based driver for 3rd party software use | |
| Languages Available | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Turkish |
| What's Included | Includes | (1) Brady Workstation Safety & Facility ID Software Suite, (1) BradyPrinter S3100-W Printer with Wi-Fi (S3100-W), (1) Cleaning Kit (PCK-6), (1) Cutter Cleaning Tool, (1) Documentation Holder, (1) Drivers CD, (1) Network Card, (1) Power Cord, (1) Quick Start Guide, (1) Stylus, (1) USB Cable |
| Warranty (North America) | 5 Years | |
| Warranty | 5 Years |
| Compliance | 45101519 | |
| RoHS Compliance Status | Compliant with Directive 2011/65/EU and 2015/863 |
